NXP JCOP 4 Secure Chip
More than 1 billion pcs of certified JCOP chip shipped to around 50 countries
Product Specification
NXP N7121/P71D321 Hardware
- Use CMOS 40nm process
- Passed Common Criteria EAL 6+ certification
- Passed EMVCo IC certification
- Use 16bit SmartMX3 processor
- Provide 344KB Flash storage space
- Provide 12KB RAM memory space
- Provide DES/AES symmetric co-processor
- Provide Fame3/RSA/ECC asymmetric co-processor
- Support ISO14443 contactless interface
- Support ISO7816 contact interface
NXP N7121/P71D321 Hardware Architecture
NXP JCOP 4 Operating System
- Passed Common Criteria EAL 6+ certification
- Passed EMVCo Platform certification
- Passed FIPS 140-2 Level 3 certification
- Compliant with Java Card v3.0.5 Classic standard
- Compliant with GlobalPlatform v2.3 standard
- Support T=1 / T=0 / T=CL protocols
- Support SHA1/SHA hash algorithms
- Support DES symmetric algorithm: 56/112/168 bits
- Support AES symmetric algorithm: 128/192/256 bits
- Support RSA asymmetric algorithm: 512~4096 bits
- Support ECC asymmetric algorithm: 128~521 bits
NXP JCOP 4 Operating System Architecture
Payment Series
- Passed BAROC Banking Criteria certification
- Support FISC - Financial Chip(ATM) Card v5.1 application
- Support VISA - VSDC v2.9 application
- Support MasterCard - M/Chip Advance v1.2.3 application
- Support JCB - J/Smart v3.2 application
- Support American Express - AEIPS v4.4.2/ExpressPay v4.0.2 applications
- Support Discover/Diner Club - D-PAS v1.1 applications
- Support UnionPay - UICS/PBOC v3.0 applications
- Support MIFARE Classic/Plus/DESFire applications
Secure ID Series
- Provide ECDSA/ECDH algorithms
- Provide On Card Key Generation feature
- Support ICAO - Doc 9303 application: ChipDoc v3
- Support BAC protection profile
- Support SAC/PACE protection profiles: CAN/MRZ/PIN
- Support EACv1/EACv2 protection profiles
- Support ePassport application
- Support eID application
- Support ePKI application
- Support eHealth application
Chip Packages
-
NXD6.1 (LxWxH) 8.2 x 10.8 x 0.58mm
-
PDM1.5 (LxWxH) 11.8 x 13.0 x 0.58mm
-
QFN20 (LxWxH) 3.0 x 3.0 x 0.32mm
Security Certifications
-

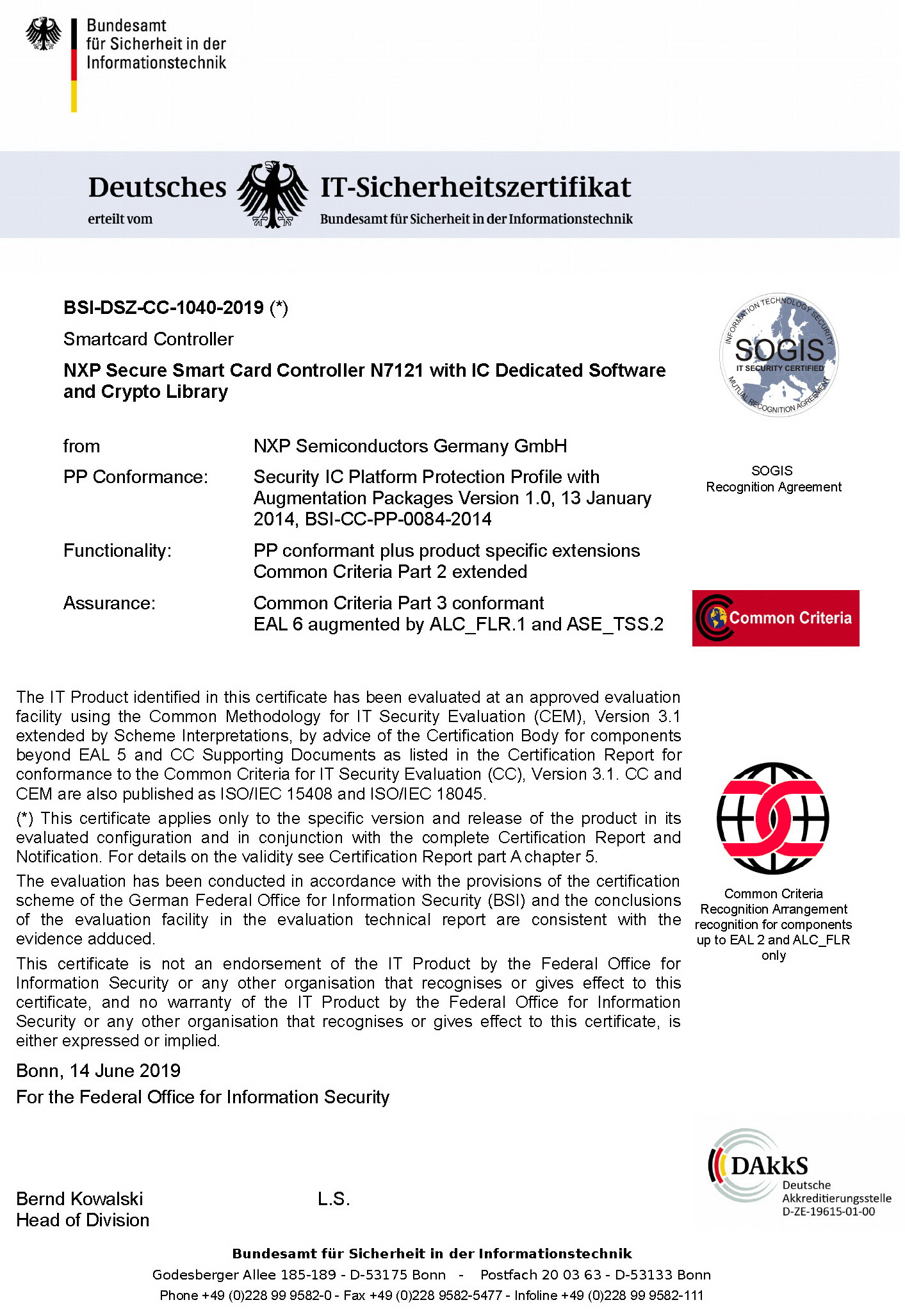

Common Criteria EAL 6+ Certification of Hardware
-
EMVCo IC Certification of Hardware
-

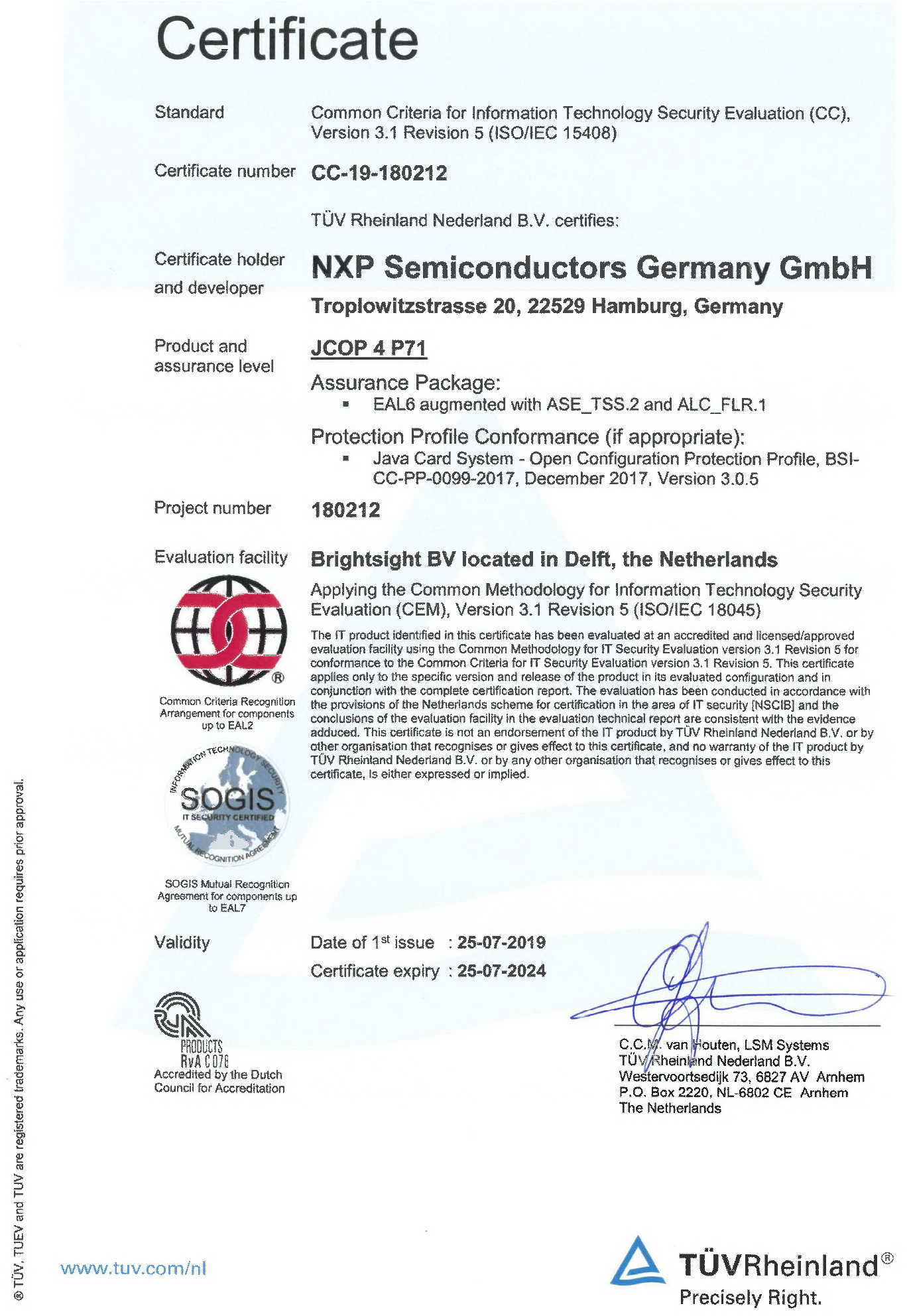

Common Criteria EAL 6+ Certification of Operating System
-

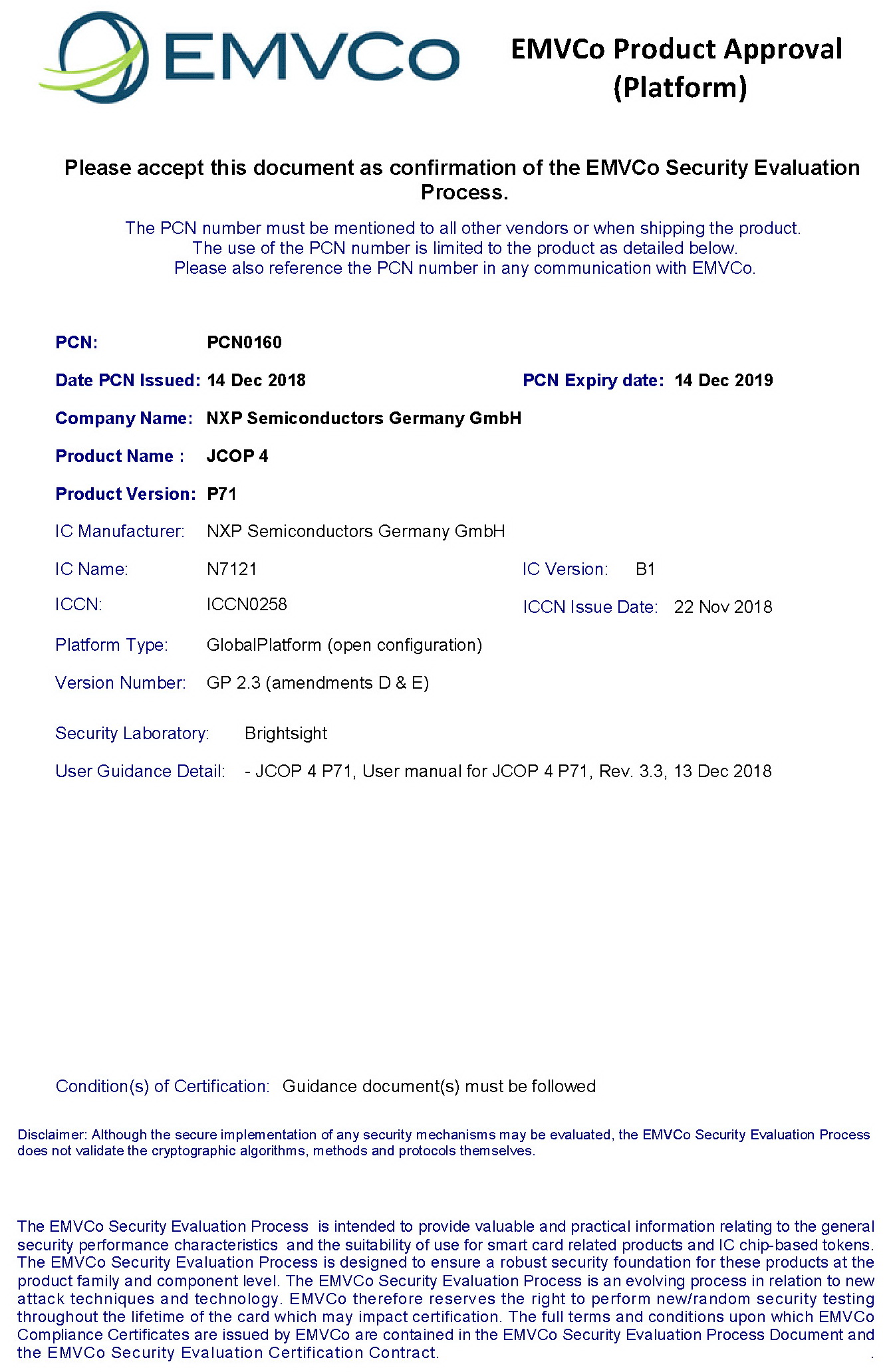

EMVCo Platform Certification of Operating System
-

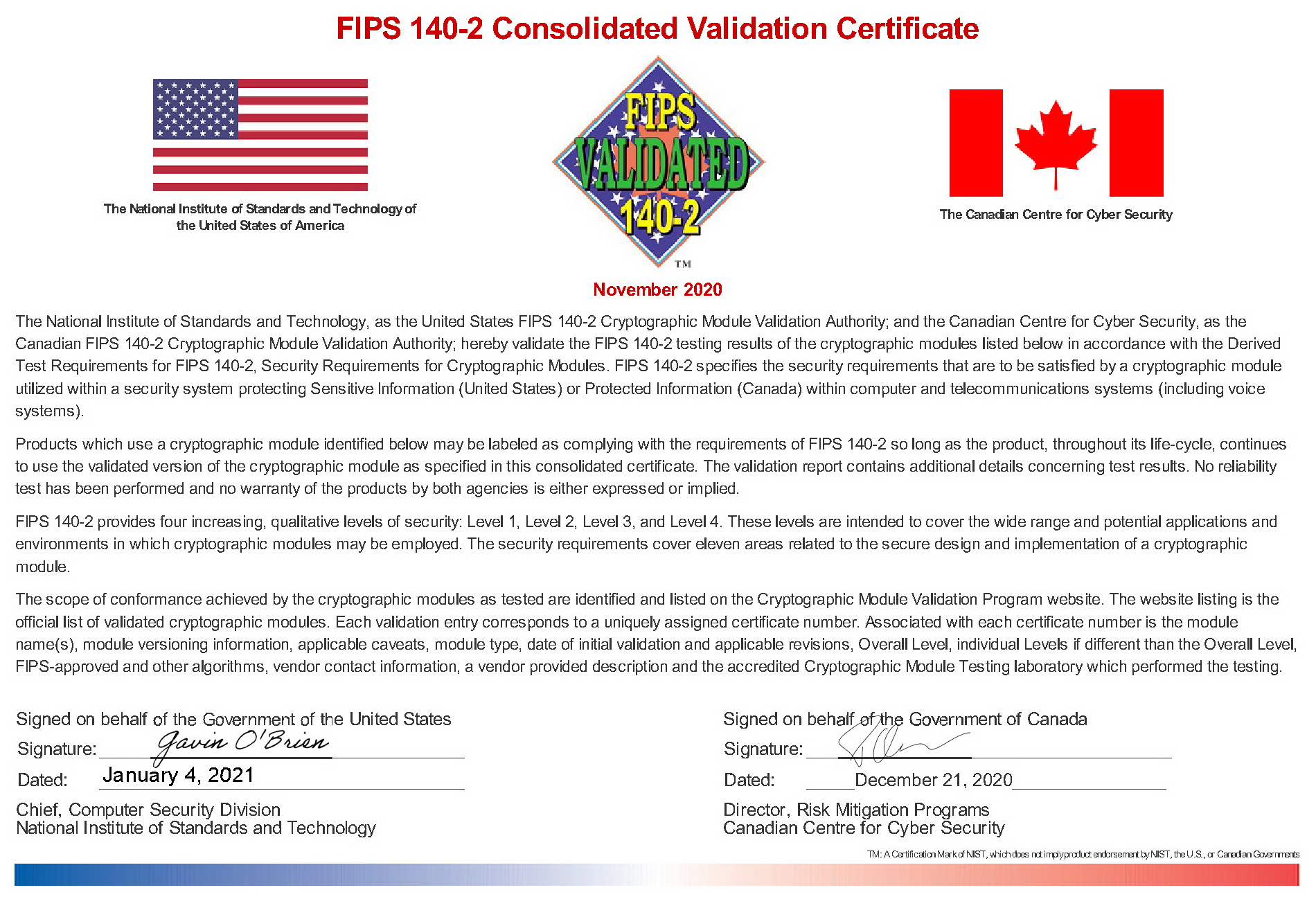

FIPS 140-2 Level 3 Certification of Operation System
-
BAROC Banking Criteria
