NXP NFC Tag Chip
Widely used NFC reading device, tap once and get the information you need
Product Specification
NTAG 213 (TT)/215/216
- Pass NFC Forum Type 2 tag certification: Cert. ID 58511(58512)/58521/58522
- Support ISO14443-3 protocol: 106 kbit/s
- Support distance of 10cm
- Support password protection: 32 bits
- Support 7 bytes UID
- Provide 144/504/888 bytes storage space
- Provide tag tamper (TT) detection wire
- Provide data retention of 10 years
- Provide write endurance 100,000 cycles
- Provide MOA8 package

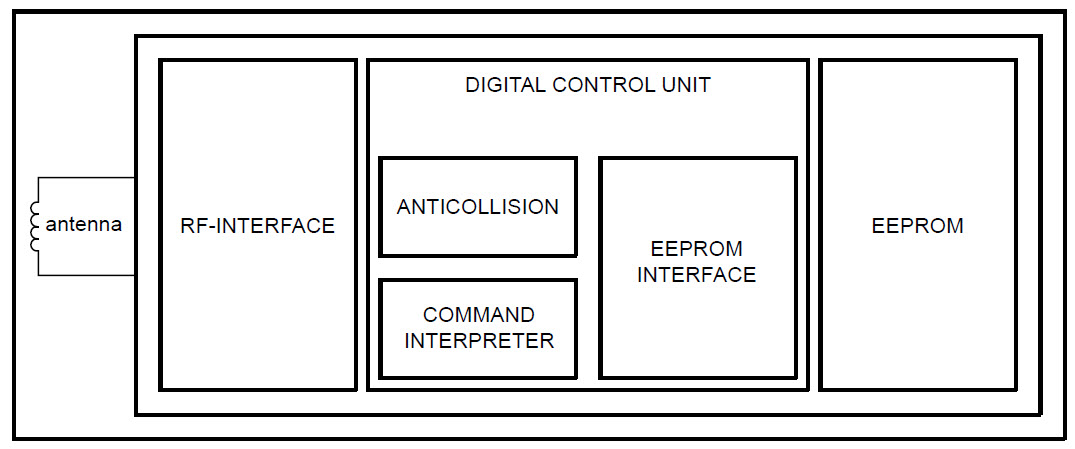

NXP NTAG 21x Hardware Architecture

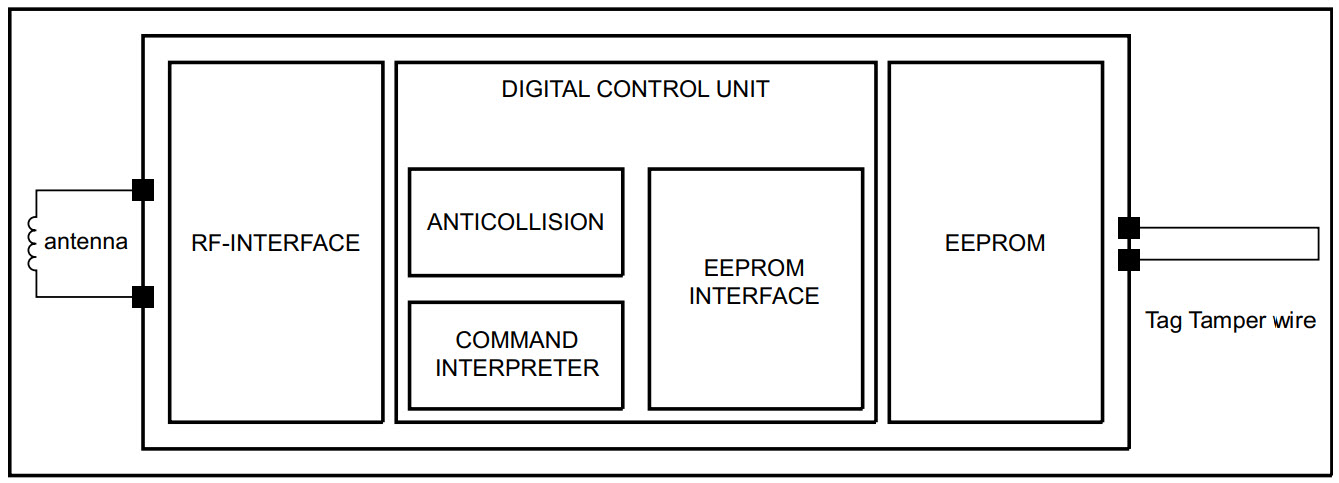

NTAG 213 TT Hardware Architecture
NTAG I2C plus 1k/2k
- Pass NFC Forum Type 2 tag certification: Cert. ID 58514
- Support ISO14443-3 protocol: 106 kbit/s
- Support distance of 10cm
- Support I2C Host protocol: 100/400 kHz
- Provide 1.67~3.6V input voltage
- Support password protection: 32 bits
- Support 7 bytes UID
- Provide 888/1912 bytes EEPROM storage space
- Provide 64 bytes SRAM memory space
- Provide energy harvesting feature: 15mW
- Provide field detection pin: FD
- Provide data retention of 20 years
- Provide write endurance 500,000 cycles
- Provide XQFN8/TSSOP8/SO8 package

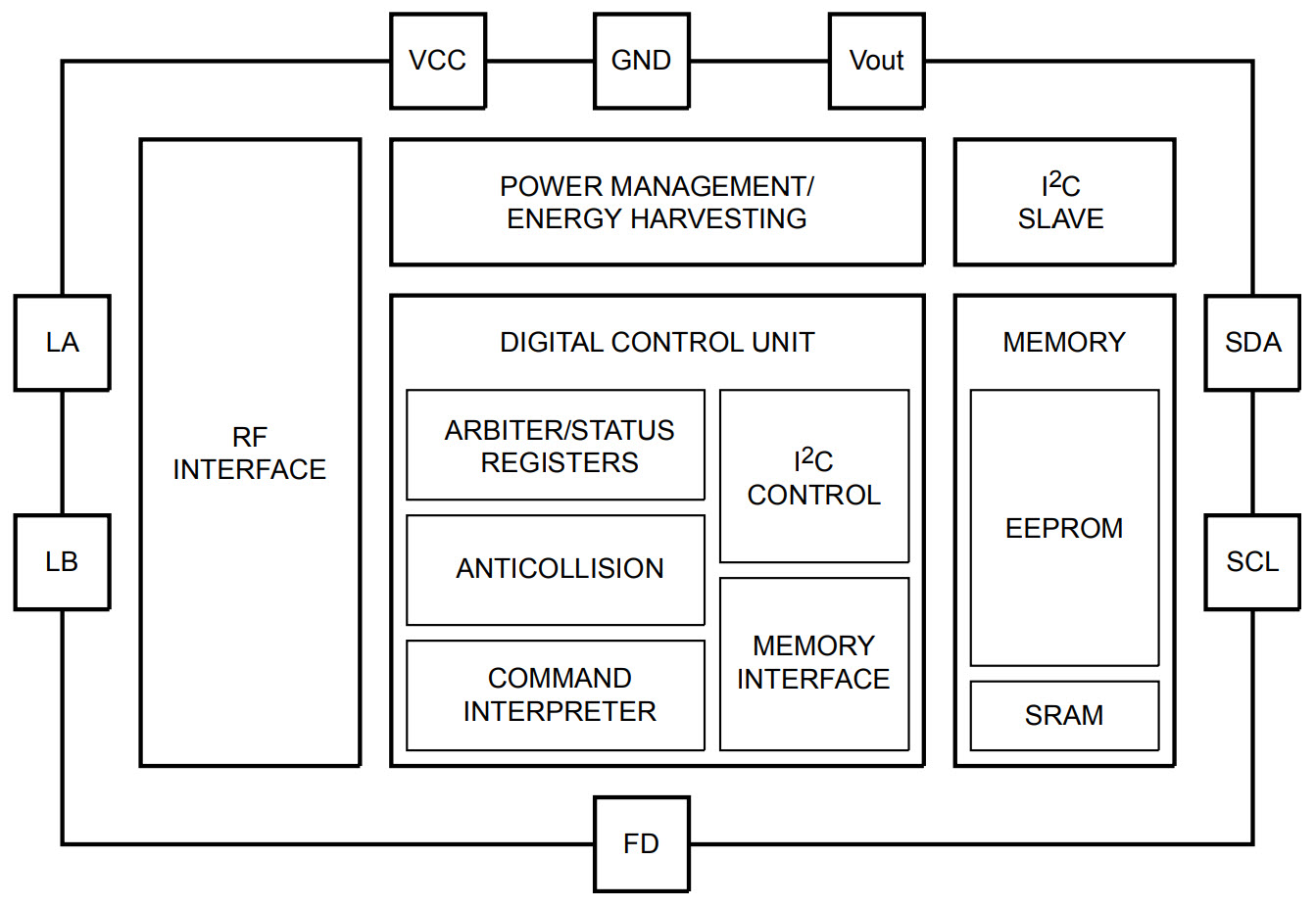

NTAG I2C plus Hardware Architecture
NTAG 424 DNA (TT)
- Pass NFC Forum Type 4 tag certification: Cert. ID 58562(58569)
- Pass Common Criteria EAL 4+ certification
- Support ISO14443-4 protocol: 106/212/424/848 kbit/s
- Support distance of 10cm
- Support AES algorithm: 128 bits
- Support 7 bytes UID or 4 bytes Random ID
- Provide 416 bytes storage space
- Support ISO7816-4 file structure
- Provide tag tamper (TT) detection wire: DP/GND
- Provide data retention of 50 years
- Provide write endurance 200,000 cycles
- Provide MOA8 package
NTAG 424 DNA Hardware Architecture

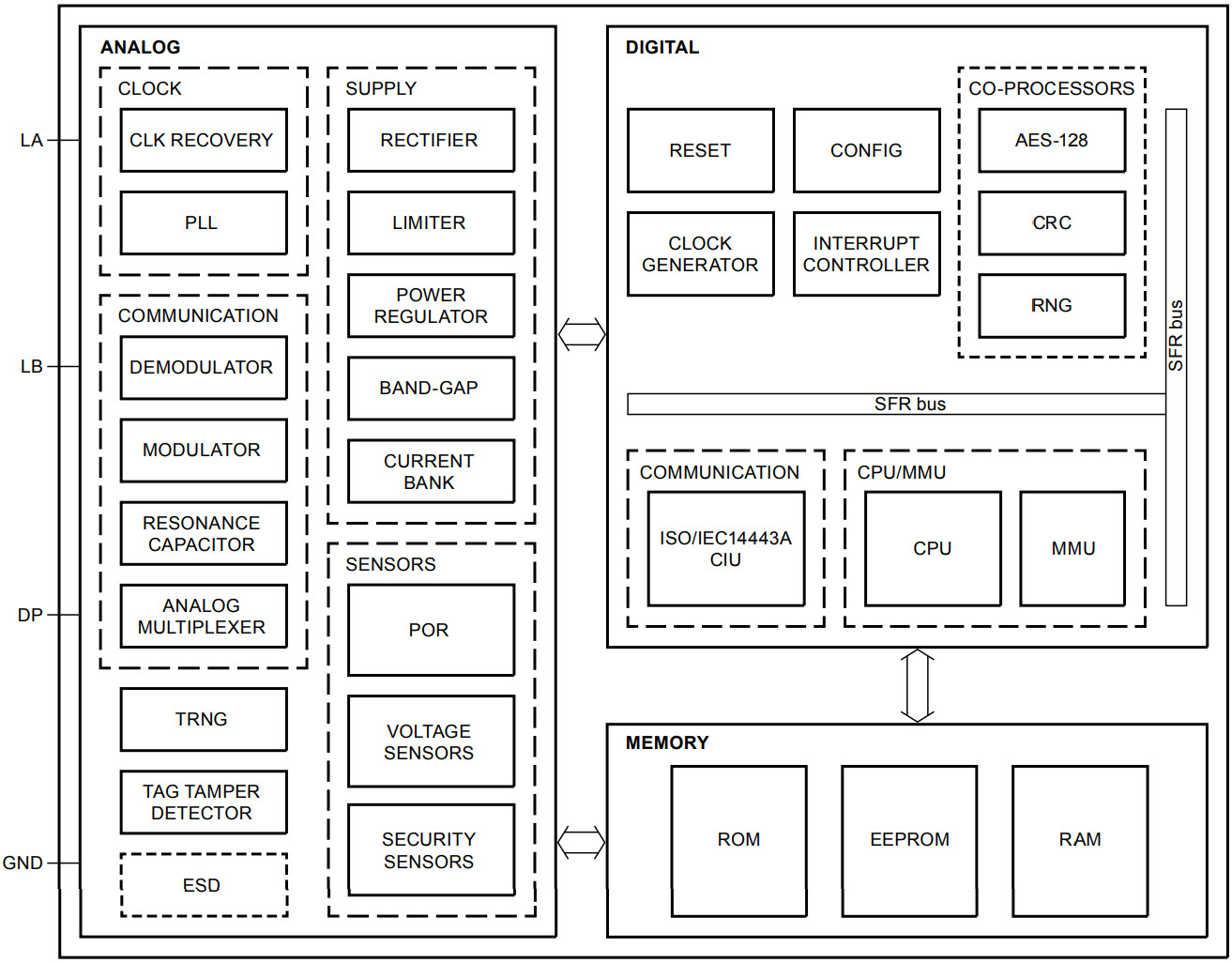

NTAG 424 DNA TT Hardware Architecture
Chip Packages
-
MOA8 (LxWxH) 3.50 x 6.25 x 0.25mm
-

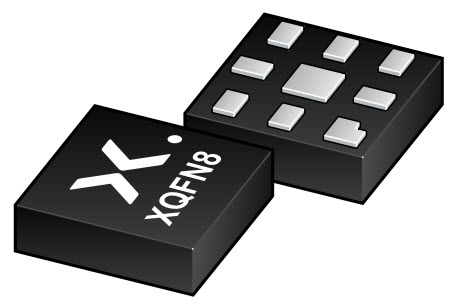

XQFN8 (LxWxH) 1.6 x 1.6 x 0.5mm
-

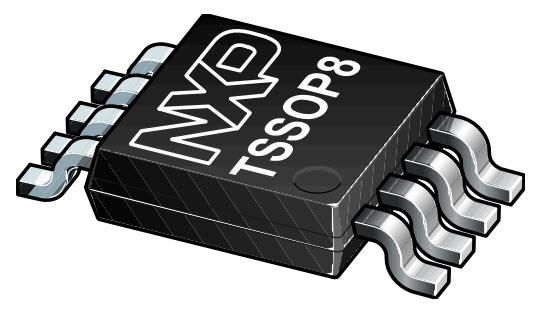

TSSOP8 (LxWxH) 3.0 x 3.0 x 1.1mm
-

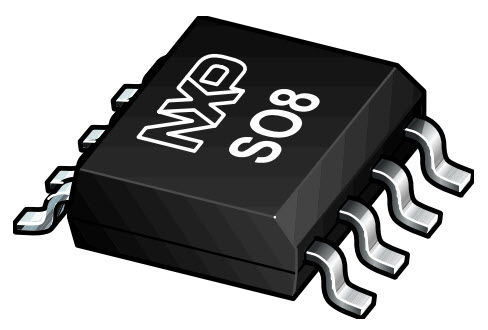

SO8 (LxWxH) 4.9 x 3.9 x 1.75mm
Security Certifications
-
NTAG 213, NFC Forum Type 2
-
NTAG 213 TT, NFC Forum Type 2
-
NTAG I2C plus, NFC Forum Type 2
-
NTAG 424 DNA, NFC Forum Type 4
-
NTAG 424 DNA TT, NFC Forum Type 4
-
NTAG 424 DNA (TT), Common Criteria EAL 4+ Certification of Hardware
