NXP SPM Fingerprint Chip
Smart card payment everywhere with a secure and reliable fingerprint
Product Specification
NXP SPM60
- Use low power MCU
- Use high-level secure element: NXP P60D145
- Passed Common Criteria EAL 6+ certification
- Provide NXP JCOP 3 operating system
- Compliant with Java Card v3.0.4 Classic standard
- Compliant with GlobalPlatform v2.2.1 standard
- Provide Bio API for customized application
- Provide 6~82KB EEPROM storage space
- Support M/Chip Advance v1.2.2 biometric card application
- Support ISO7816 contact fingerprint application
- Support ISO14443 contactless fingerprint application
- No battery need, directly powered by radio frequency (RF)
- Support hot lamination, fit to ISO ID-1 form factor card production
- Compliant with ISO and CQM validations
- Compliant with EMV and POS devices
- Provide 2 fingerprint enrolled in secure element
- Provide Match-on-Card on secure element
- False Acceptance Rate (FAR): < 1/10000
- False Rejection Rate (FRR): < 3%
- Time of contact verification: ~0.8s
- Time of contactless verification: ~1.3s
- (Optional) ISO7816 Contact
- (Optional) ISO14443 Antenna
- (Optional) Fingerprint Sensor: FPC 1321
SPM60 Hardware Architecture

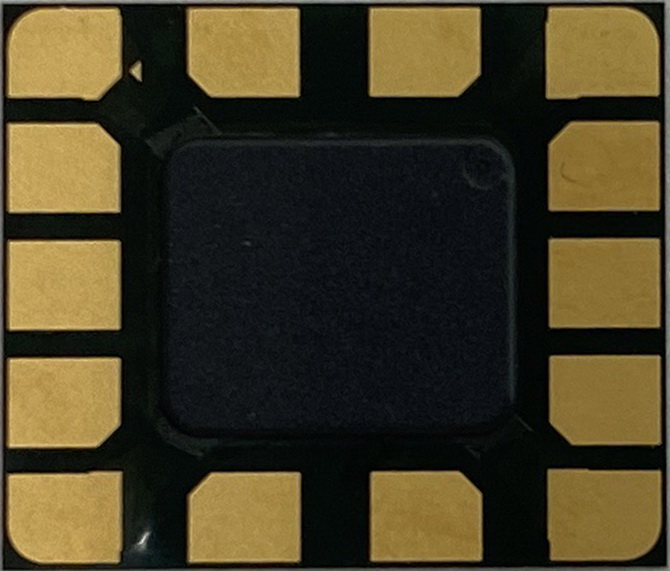

Chip Package
-
SPM60 (LxWxH) 15.0 x 12.8 x 0.42mm
-

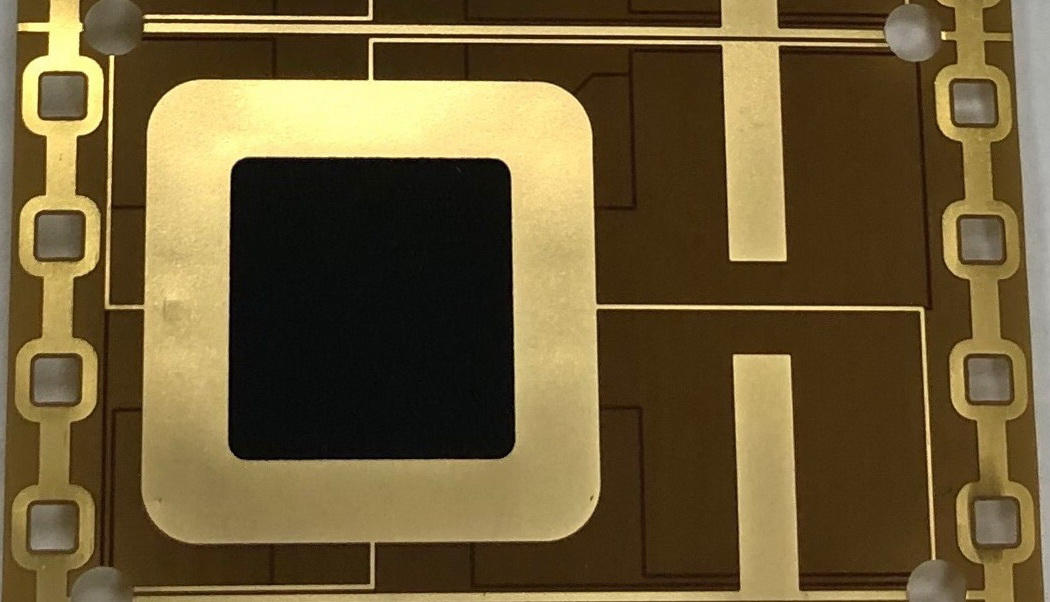

(Optional) FPC1321：(LxWxH) 15.5 x 15.5 x 0.315mm
-

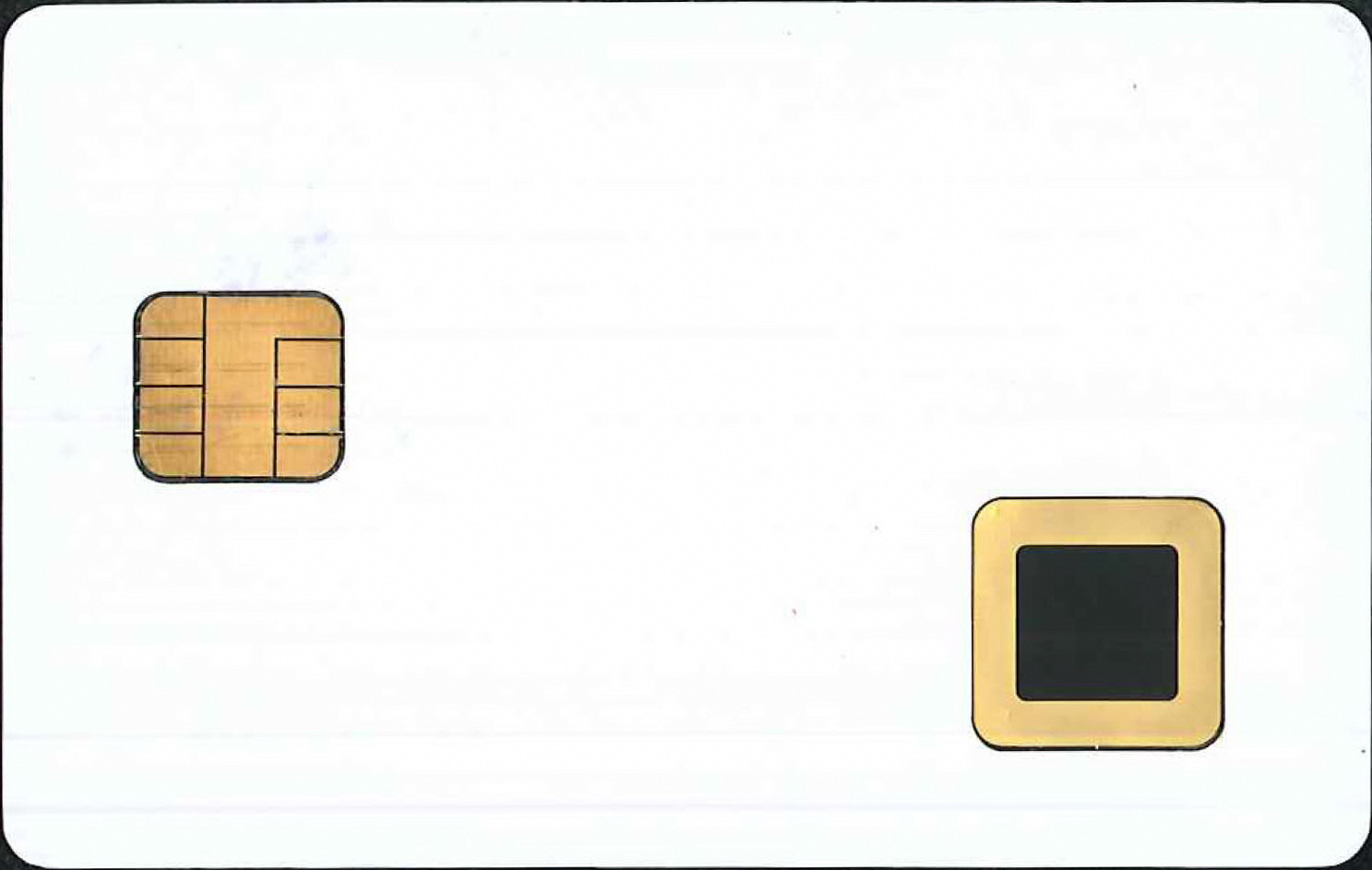

Sample Card (by JINCO Universal)
Security Certification
-
P60D145, Common Criteria EAL 6+
