NXP JCOP 4.5 Secure Chip
More than 1 billion pcs of certified JCOP chip shipped to around 50 countries
Product Specification
NXP N7122/P71D600 Hardware
- Use CMOS 40nm process
- Passed Common Criteria EAL 6+ certification
- Passed EMVCo IC certification
- Use 16bit SmartMX3 processor
- Provide 620KB Flash storage space
- Provide 12.3KB RAM memory space
- Provide DES/AES symmetric co-processor
- Provide Fame3/RSA/ECC asymmetric co-processor
- Support ISO14443 contactless interface
- Support ISO7816 contact interface
- Support I2C/SPI interface
NXP N7122/P71D600 Hardware Architecture
NXP JCOP 4.5 Operating System
- Passed Common Criteria EAL 6+ certification
- Passed EMVCo Platform certification
- Passed FIPS 140-3 Level 3 certification
- Compliant with Java Card v3.0.5 Classic standard
- Compliant with GlobalPlatform v2.3 standard
- Support T=1/T=0/T=CL/I2C/SPI protocols
- Support SHA1/SHA hash algorithms
- Support DES symmetric algorithm: 56/112/168 bits
- Support AES symmetric algorithm: 128/192/256 bits
- Support RSA asymmetric algorithm: 512~4096 bits
- Support ECC asymmetric algorithm: 128~521 bits
- Support EdDSA asymmetric algorithm: Ed25519 (RFC 8032)
- Support Diffie-Hellman(DH) key exchange algorithm: Curve25519/Curve448 (RFC 7748)

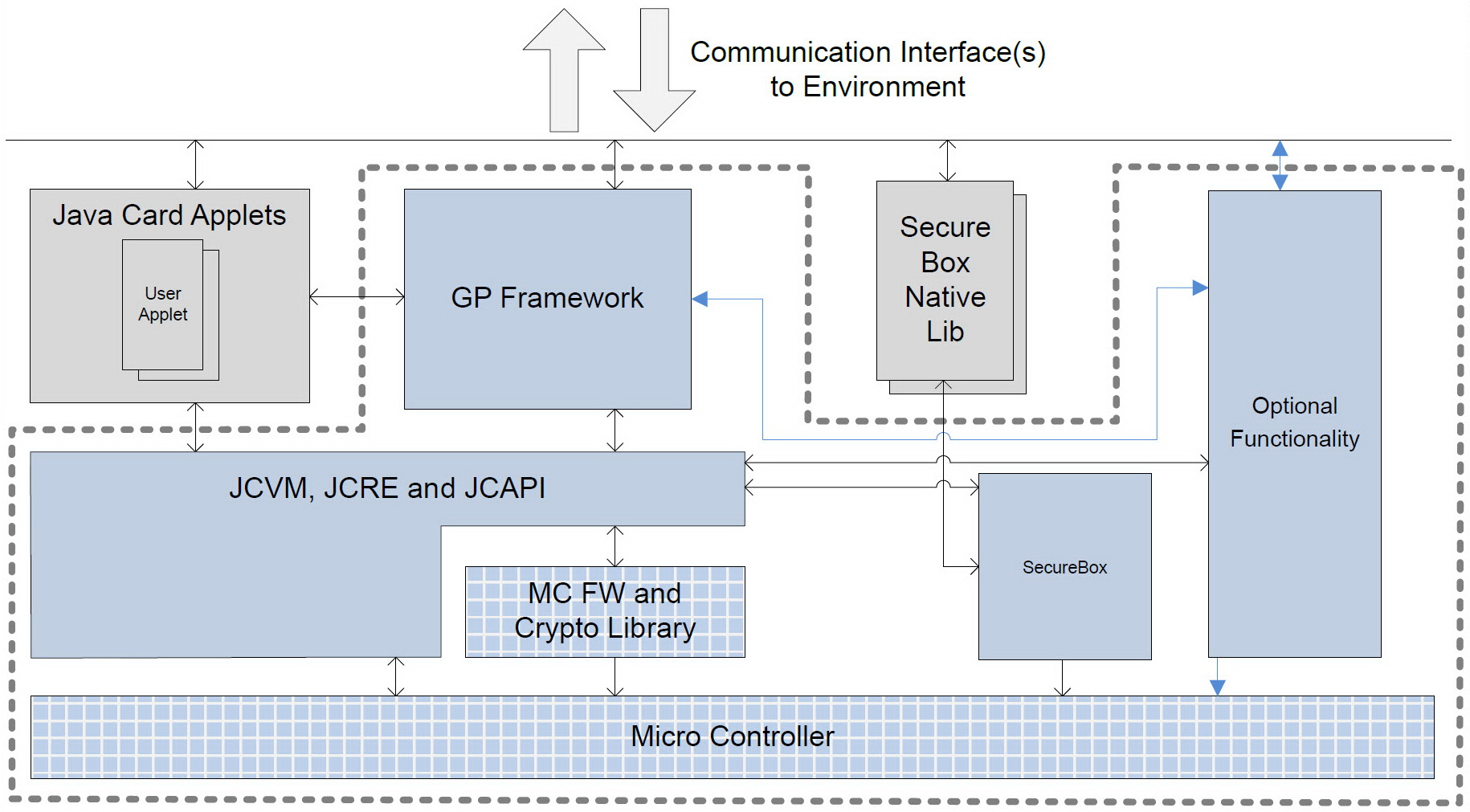

NXP JCOP 4.5 Operating System Architecture
Payment Series
- Passed BAROC Banking Criteria certification
- Support FISC - Financial Chip(ATM) Card v7 application
- Support FXML - Financial XML Certificate Card v7 application
- Support VISA - VSDC v2.9.2 application
- Support MasterCard - M/Chip Advance v1.2.3 Plus application
- Support JCB - J/Smart v3.2 application
- Support MIFARE S50/Plus EV2/DESFire EV3C applications
Secure ID Series
- Provide ECDSA/ECDH/Ed25519/Curve25519/Curve448 algorithms
- Provide On Card Key Generation feature
- Support ICAO - Doc 9303 application: ChipDoc v4
- Support BAC protection profile
- Support SAC/PACE protection profiles: CAN/MRZ/PIN
- Support EACv1/EACv2 protection profiles
- Support ePassport application
- Support eID application
- Support ePKI application
- Support eHealth application
Chip Packages
-

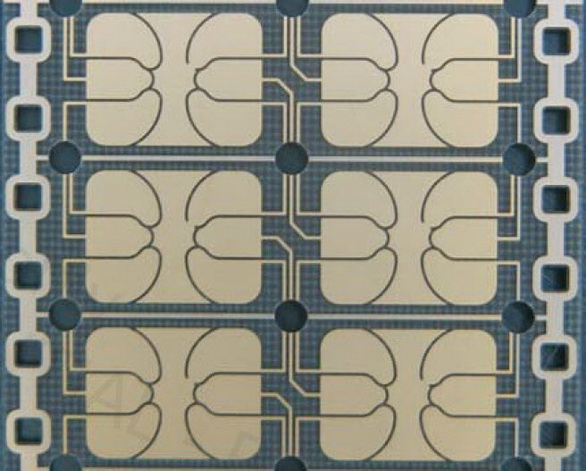

NXD6.1 (LxWxH) 8.2 x 10.8 x 0.58mm
-

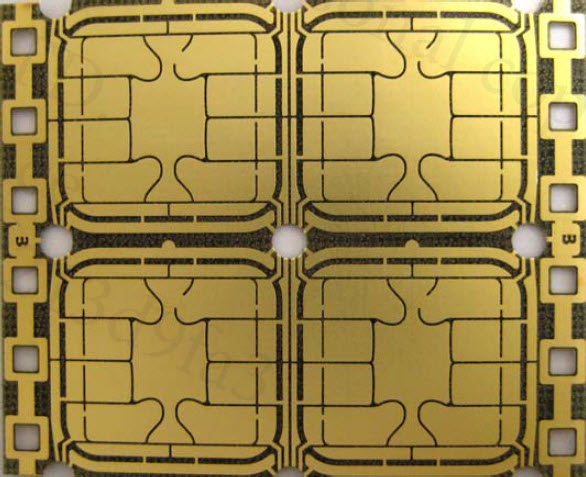

PDM1.5 (LxWxH) 11.8 x 13.0 x 0.58mm
-
QFN20 (LxWxH) 4.0 x 4.0 x 0.85mm
Security Certifications
-

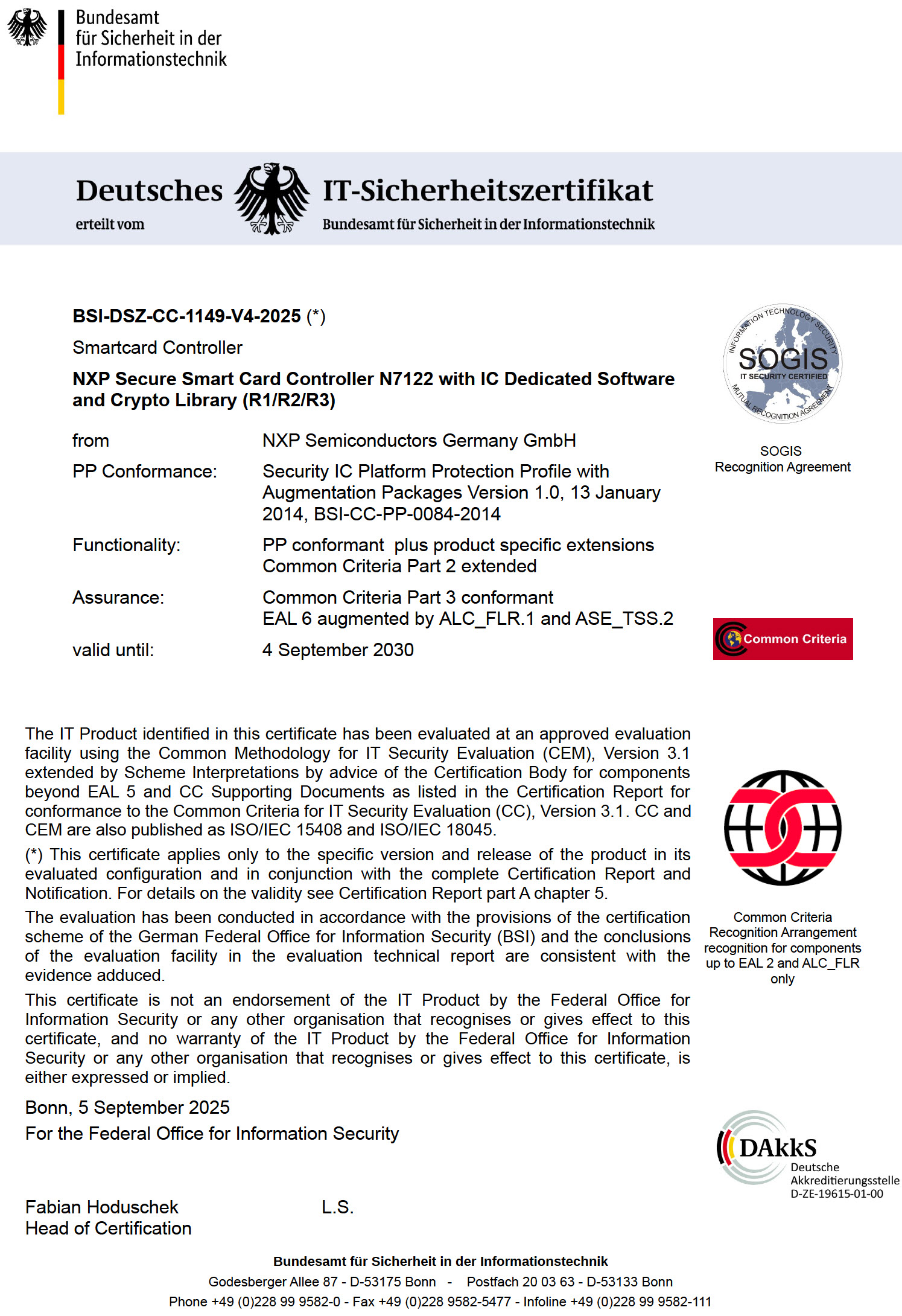

Common Criteria EAL 6+ Certification of Hardware
-
EMVCo IC Certification of Hardware
-

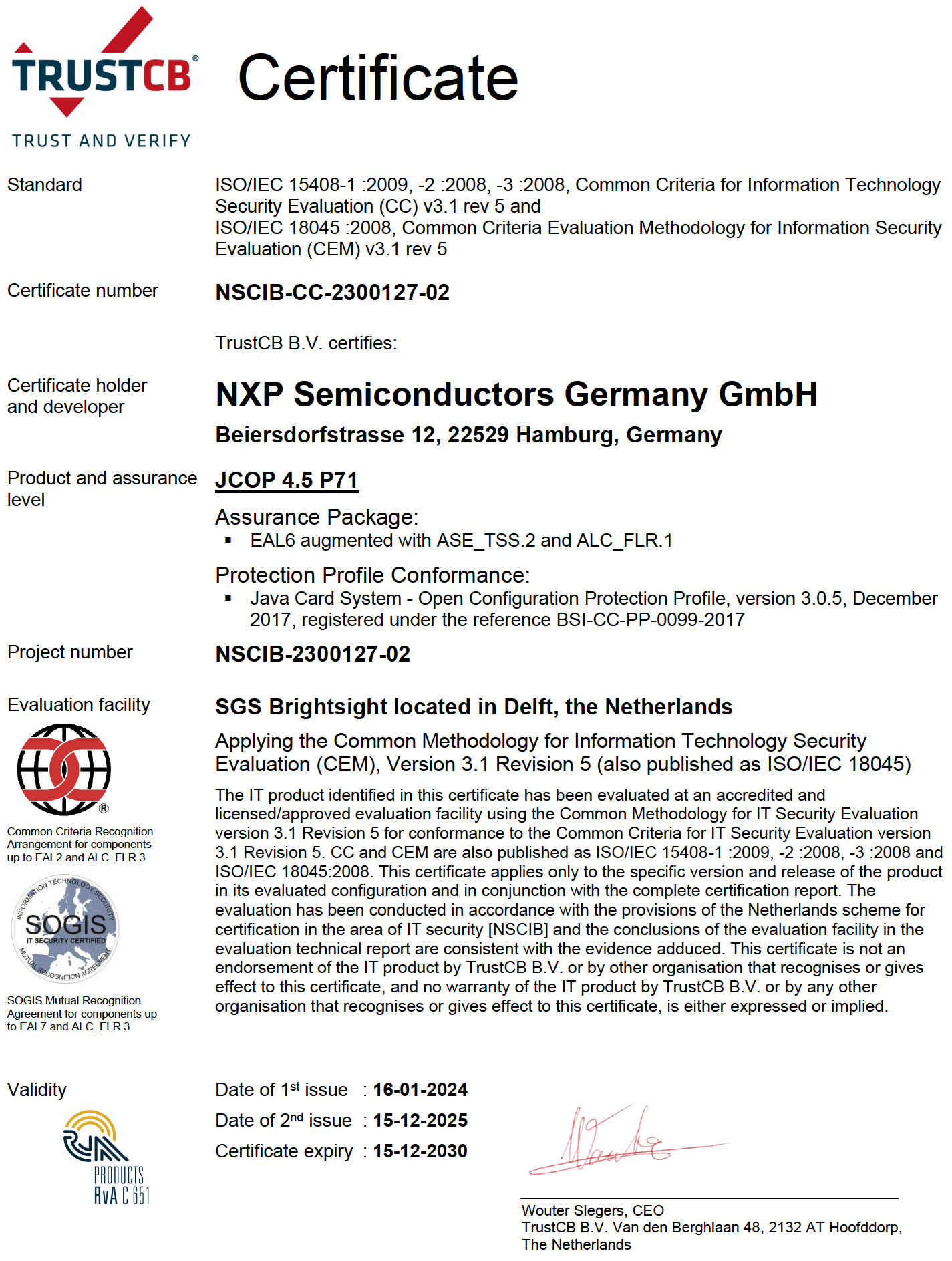

Common Criteria EAL 6+ Certification of Operating System
-

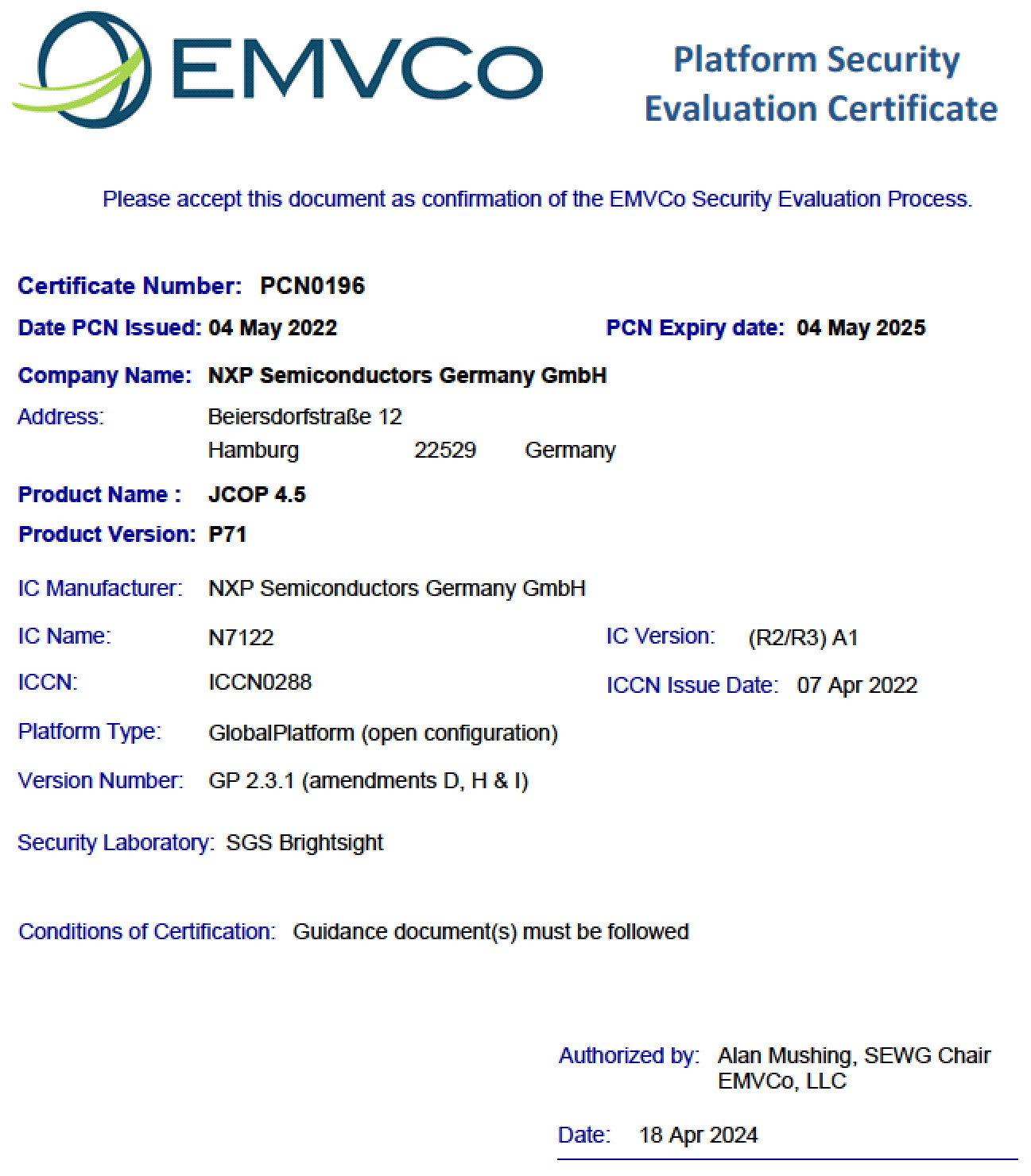

EMVCo Platform Certification of Operating System
-

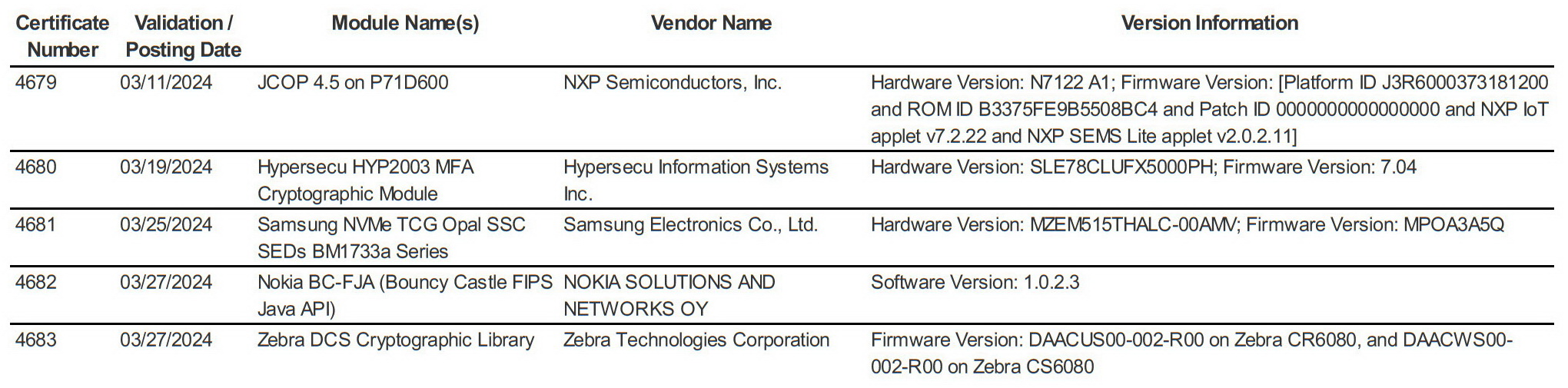

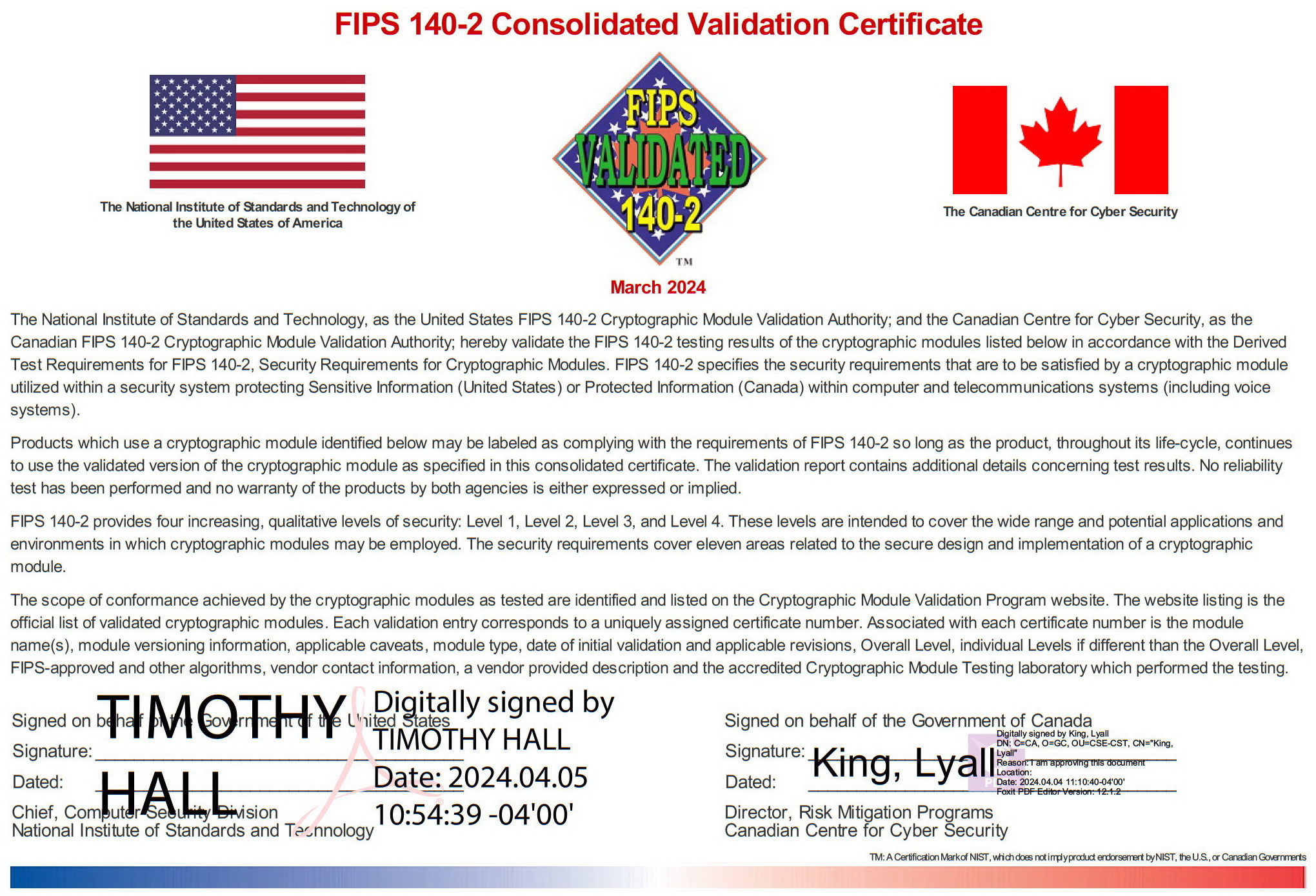

FIPS 140-3 Level 3 Certification of Operation System
-

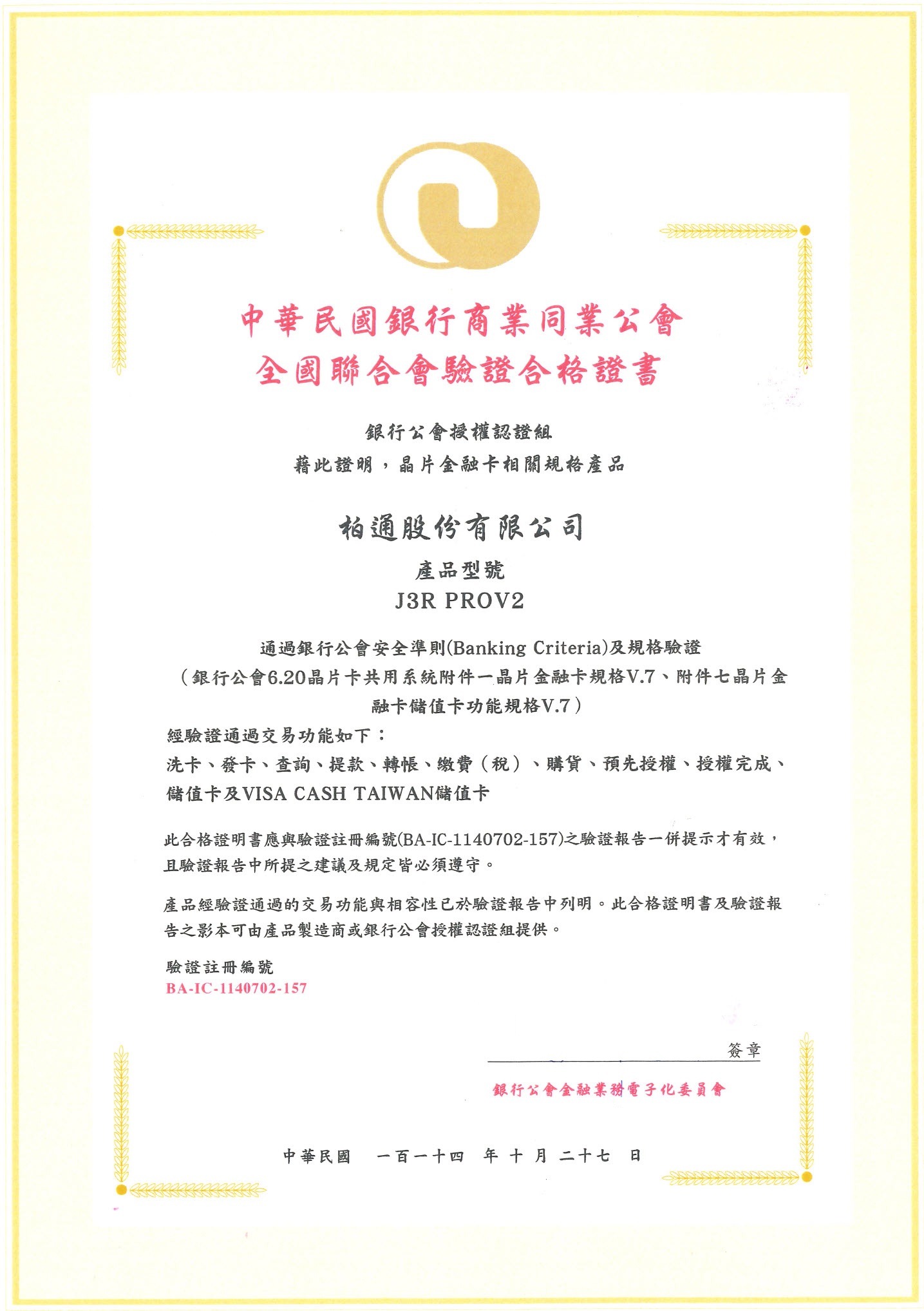

BAROC Banking Criteria
