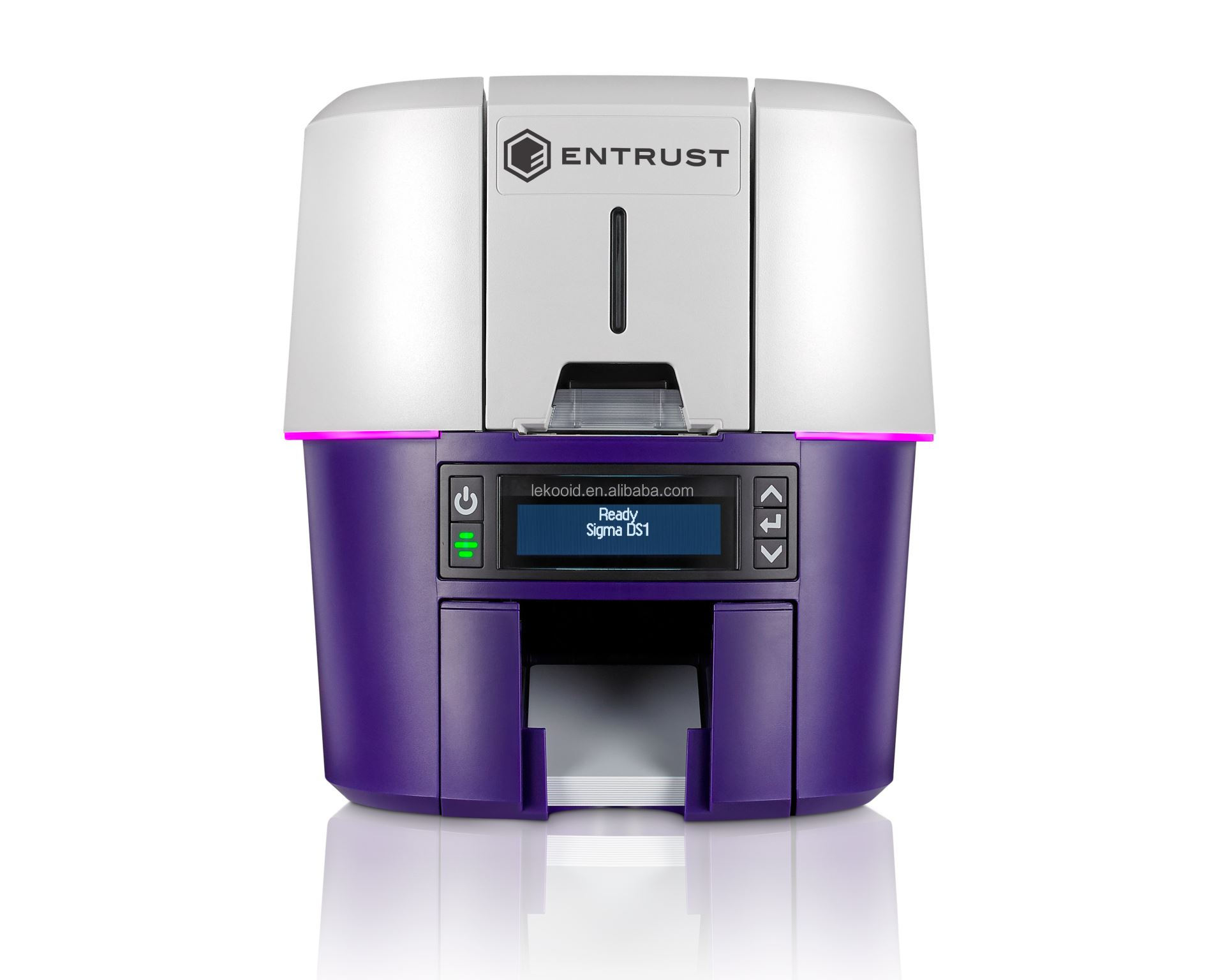

The next generation dual-sided printer.

As the world leader and innovator in identity issuance, we’re reimagining the ID Solutions industry by providing an issuance system that’s specifically designed for today’s environments, which gives you the ability to easily issue the most secure identities in the world.


Product Features

  • • Out of Box Experience

    • Reduces the complexity and frustrations of unboxing specifically engineered to start the ultimate printing experience.


  • • Printer Dashboard

    • See printer status, order supplies, check cleaning status, update firmware, or contact help, all on your mobile device.


  • • Issuance Flexibility

    • Printing cards has never been easier with flexibility to issue IDs with software in the cloud or on-premise.


  • • Unmatched Security

    • Ensure your data is safe from intruders with encryption technology, TPM Module, and Secure Boot.


  • • Physical & Digital

    • Ability to issue a physical ID (card) and a digital ID (mobile flashpass) at the same time.

Standard Features and Supplies

Print Specification

  • Print technology Dye sublimation
  • Print capabilities One- or two-sided, edge-to-edge printing
    Full-color and monochrome printing
    Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
    Printer pooling/sharing (support wifi)
  • Print resolution 300 dots per inch (dpi) (300 x 600, 300 x 1200)
    300 dots-per-inch (dpi) X 600 dpi (black and single color graphics printing)
    300 dots-per-inch (dpi) X 1200 dpi (black and single color graphics printing)
  • Print speed Single-sided color ribbon: up to 225 cards per hour (cph)
    Double-sided color ribbon: Up to 140 cards per hour (cph)

General Specifications

  • Resident memory 8GB up
  • Printer display Printer status messages
    Multiple backlight settings
    International languages available: English, Spanish, German, Italian and Japanese
  • Entrsut ® Certified Supplies featuring Intelligent Supplies Technology ™
  • Card capacity Input hopper: 125 cards
    Output hopper: 25 cards
    Front exception card slot
  • Magnetic stripe encoding ISO 7811 three-track option (high- and low-coercivity)
    JIS Type II single-track option
  • Smart card encoding contact/contactless all-in-one encoder, ISO 7816 T=0/T=1
    (read/write) for MIFARE, ISO7816, ISO14443 A/B,
    ISO15693, ISO FeliCa). DESFire Series, HID Prox (125khz)

Machine Specifications

  • Physical dimensions L 44.2 cm x W 22.6 cm x H 22.9 cm
  • Weight 5.4 Kg
  • Electronic requirements 100/120V or 220/240V
  • Connectivity USB 2.0/3.0
    WIFI：802.11g/n
  • Operating system support for printer driver Windows10
    Windows8.1(32 and 64bit)
    Windows 7 (32 and 64 bit)
    Windows Server® 2016 (64 bit)
  • Warranty 12 months
  • Special Printing Technology Support New Luster Specialty Ribbon
    TrueColor : prints as close as possible to color in the image file
    Vivid：prints colors with higher saturation and contrast
    Legacy : prints as close as possible to the SD and CD series
    Color ribbons : YMCKT, 250/500 images
    Monochrome ribbons : Black, white, blue, red, green, scratch-off, silver matte, gold matte, silver, metallic, and gold metallic: 1500 images
  • Agency Approvals cULus,FCC,I.C.,CE,Ctick,VCCI,RoHS,WEEE,CCC,KCC
